Data Structures

A data structure is a particular way of organizing data in a computer so that it can be used effectively. A

Non-primitive data structure

The Non-primitive data structure cannot be directly controlled by computer commands. The Non-primitive data structure is derived from the primitive data structure.

There are two types of non-primitive data structure:

1. Linear data structure

2. Non-linear data structure

Linear data structure

Linear data structures are those data structures in which data elements are stored and organized in a linear manner, in which one data element is connected to another as a line. For example, array, linked list, queue, stack.

Non-linear data structure

Non-linear data structures are those data structures in which data elements are not organized in a linear manner. In this, a data element can be associated with any other data element. For example, tree and graph.

Data Structure Operations

Various data structure operations are used to process the data in a data structure which is as follows:

1. Traversing: Visiting each element of the data structure only once is called traversing.
2. Searching: Finding the location of the record or data in the data structure is called searching.
3. Inserting: Adding the same type of element to the data structure is called insertion. An element can be added anywhere in the data structure.
4. Deleting: Removing an element from a data structure is called Deletion. An element can also be removed from anywhere in a data structure.
5. Sorting: Arranging a record in a logical order in the data structure is called shorting.
6. Merging: In the data structure, the record is stored in many different files. Adding these different files to a single file is called merging.

Array Data Structure

An array is a collection of items stored at contiguous memory locations. The idea is to store multiple items of the same type together. This makes it easier to calculate the position of each element by simply adding an offset to a base value, i.e., the memory location of the first element of the array (generally denoted by the name of the array).

1 D arrays  use of  one-D array  to store a character and print

2-D Arrays

Formulas for calculation of address in 2D arrays

   a[i][j] =  (row

Circular linked list :-

Insertion of node at beginning

Insert a element at the end:-

Inserting an element at a specific position :

consider position no 2

Deletion at the beginning -

Deletion at the End -



Deletion at a specific position

         Doubly Linked List



struct node

{

   struct node *prev;

    int data;

   struct node *next

}*head, *tail, *temp,*new;

traversal-

Inserting at Beginning

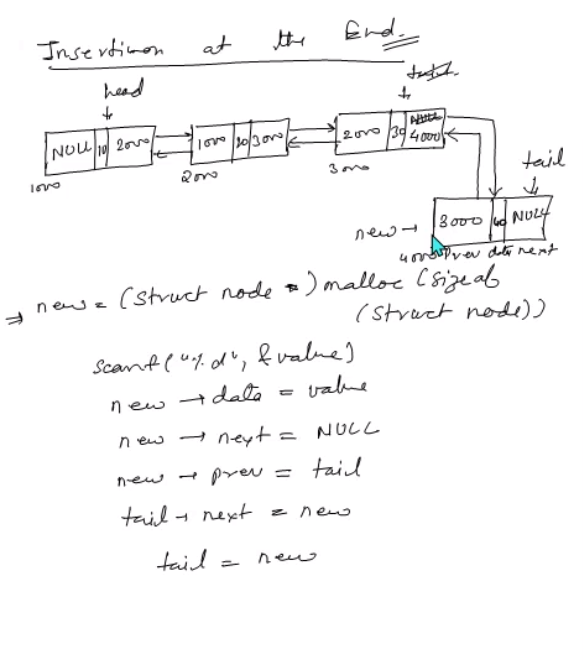

in case of insertion at the end

Insertion at a specific position

Deletion at beginning-

temp=head;

head=head->next;

temo->next=NULL;

head->prev=NULL;

at the end
